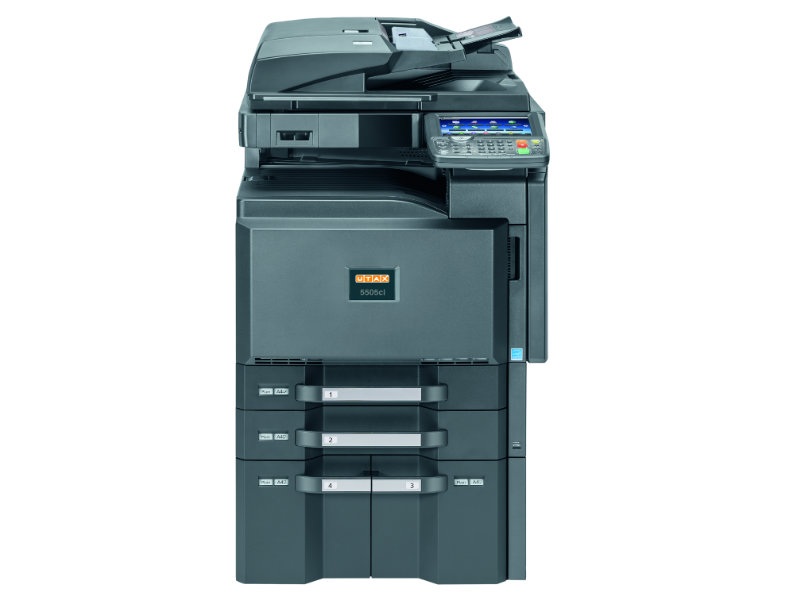

UTAX 5006ci

UTAX 5006ci

  • UTAX-5505ci-2
  • UTAX-5505ci-3

For a Quick Quote Click Here!

This multifunctional system fits almost any environment with a speed of up to 50 pages per minute in colour and 55 pages per minute in black and white.

If you are looking for a work-group system for teams and departments or a centrally installed system for higher volumes – this multifunctional UTAX 5006ci Photocopier system fits almost any environment with a speed of up to 50 pages per minute in colour and 55 pages per minute in black and white. A print resolution of 1,200 x 1,200 dpi, newly developed toner and advanced colour technology provide a perfect result.

In terms of reliability and quality the  UTAX 5006ci Photocopier system sets a very high standard for high volume office applications as well as for digital printing tasks in central reprographic departments. Also, the paper management offers high flexibility due to the possibility of printing onto paper weights up to 300 g/m² and paper sizes up to A3+.

The numerous options, for example in the area of paper management and finishing, comply with various user requirements. The paper capacity can optionally be increased up to 7,650 sheets from eight paper sources and with the optional finishing capabilities the production of a brochure is an easy process.

Another advantage of the UTAX 5006ci Photocopier is the easy handling, the user-friendly touch panel and the innovative HyPAS technology for user-specific work-flows to be integrated for maximum flexibility.

FunctionCopy, print, scan, optional: fax
Print technologyLaser colour and b/w
Original formatmax A3 from platen glass
Copy/print speedmax 50 A4 pages/min and max 25 A3 pages/min in colour
max 55 A4 pages/min and max 27 A3 pages/min in b/w
1st page (Copy/Print)Colour: 4.7/6.2 seconds*, b/w: 3.4/4.9 seconds*
Warm-up time30 seconds
Copy resolution600 x 600 dpi, 9,600 x 600 dpi level
Paper feed2 x 500 sheet universal cassettes (A5R-A3+), 150 sheet multi-bypass (A6R-A3+, Banner [305 x 1,219 mm]), A3+ in print mode only
Paper weightsUniversal cassette 60-256 g/m², multi-bypass 60-300 g/m²,
duplex 60-256 g/m²
Paper output250 sheet A4
System memory2 GB RAM, 2 x 160 GB HDD**
Continous copying1-999 copies
Zoom25 %-400 % in steps of 1 %
FunctionsAdjustable touch screen, duplex, 1,000 management codes, multi tasking controller, direct printing from USB stick, colour optimizer for printing, etc.
Dimensions747 x 648 x 767 mm (H x W x D)
Weightapprox. 114 kg
Mains voltage220/240 V, 50/60 Hz
Power consumptionapprox. 1,800 max, approx. 1,140 W in operation, approx. 200 W in stand-by mode, approx. 10.7 W in sleep mode
SafetyGS/TÜV, CE
Print System
TypeIntegrated within the system
Print formatA6R-A3+
Print resolution600 x 600 dpi, 9,600 x 600 dpi level
ProcessorFreescale QorlQ P1022 (Dual Core) 1.067 MHz
InterfacesUSB 2.0, 10/100/1000BaseTX, USB Host, CF Slot
Network protocolsTCP/IP, IPX/SPX, Net BEUI, EtherTalk
Operating systemsWindows XP, Vista, Windows 7/8, Server 2003/2008 R2/2012, Novell NetWare, Linux, Mac ex OS 10.4
EmulationsPCL6 (5c, XL), KPDL 3 (PostScript 3 compatible), XPS, PRESCRIBE IIc
FunctionsPDF/XPS direct printing, printing of e-mails, private printing, barcode printing
Scan system
Scan typeCCD colour and b/w
Scan formatmax A3
Scan speedb/w: max 80/160 A4 originals/min (simplex/duplex) with DP-772 (300 dpi)
colour: max 80/160 A4 originals/min (simplex/duplex) with DP-772 (300 dpi)
Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
Scan modePhoto, text, photo/text, OCR
Network protocolTCP/IP
Operating systemsWindows XP, Vista, Windows 7/8, Server 2003/2008 R2/2012
FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan (Windows Vista, Windows 7/8, Server 2008 R2/2012), SMTP authentication, LDAP, PDF compression and encryption
Optional fax system (W) B
CompatibilitySuper G3
Original formatmax A3
Modem speed33.6 kbps
Transmission speed3 seconds or less using JBIG
Compression methodJBIG, MMR, MR, MH
Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi), 600 x 600 dpi
Fax memory12 MB, max 120 MB
Operating systemsWindows XP, Vista, Windows 7/8, Server 2003/2008 R2/2012
FunctionsNetwork fax driver, automatic redialling, delayed transmission, max 2 fax kits for parallel transmission and reception
*Depending on operating status.
**For copy, print, scan, fax.
Original feederDP-770 (B) document processor with automatic reverse function (A5R-A3, capacity: 100 sheet A4, paper weight 45-160 g/m²),
DP-772 document processor with simultaneous duplex scanning (A6R-A3, capacity: 175 sheet A4, paper weight 35-220 g/m² [A5R-A3])
Platen coverPlaten cover type E (if document processor is not installed)

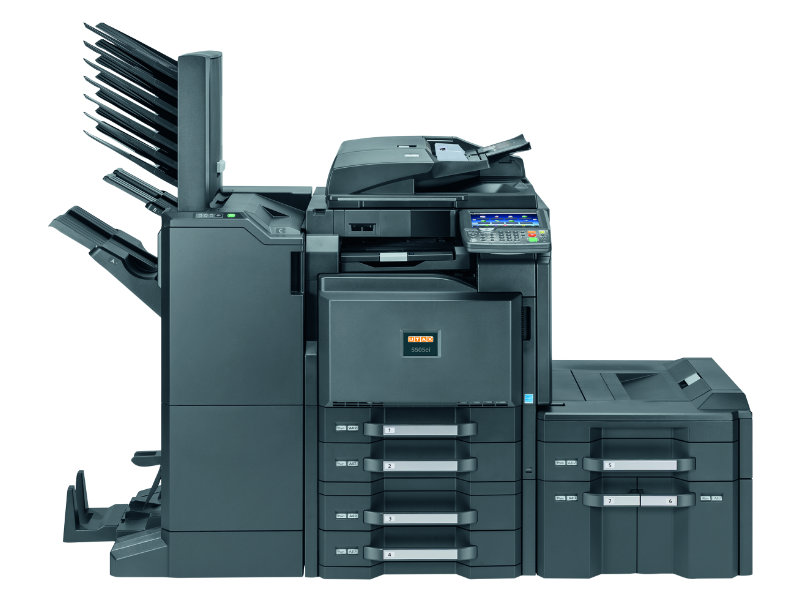

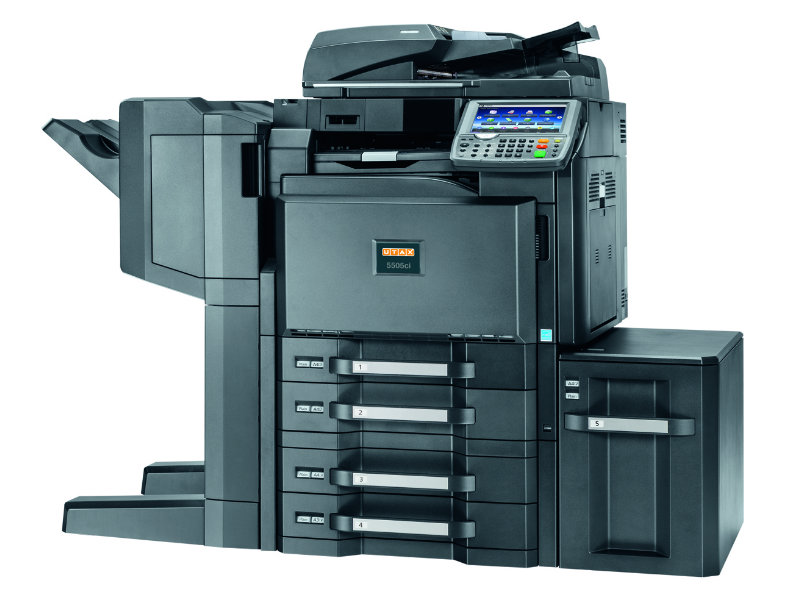

FinisherDF-770 (C) (capacity: 1,000 sheet A4, stapling max 50 sheet A4), DF-790 (C) (capacity: 4,000 sheet A4, stapling max 65 sheet A4), PH-7C hole punch unit for DF-770 (C)/790 (C), BF-730 brochure module for DF-790 (C) (max 16 sheet saddle stitching and folding A4/A3, tri-folding max 5 sheet A4), MT-730 (B) multi tray for DF-790 (C)
Job SeparatorJS-732 (inner), JS-731 (outer)
Paper feedmax 2 x PF-730 (B) (2 x 500 sheet universal cassettes (A5R-A3+)), max 2 x PF-740 (B) (2 x 1,500 sheet large capacity cassettes (A4)), PF-780 (B) (500 sheet multi-purpose cassette (A5R-A3+), required if two PF-730 (B)/PF-740 (B) are installed), PF-770 (3,000 sheet large capacity tray (A4), side deck)
Other optionsScan extension kit (A), Data security kit (E), Internet fax kit (A), Printed document guard kit (B), Card authentication kit (B), Card reader holder (E), Keyboard holder (B), Banner guide (A), UG-33 ThinPrint® kit, UG-34 Emulation option kit, IB-50 Gigabit Ethernet card, IB-51 WLAN card, DT-730 (B) Document tray, cabinet no. 63, Fiery® Controller

    Please call on 18­90 7­70 770 or 01 62­0 5501 or simply fill out the form below if you would like to know more about the ordering process or about the product itself. We'll get back to you shortly!
