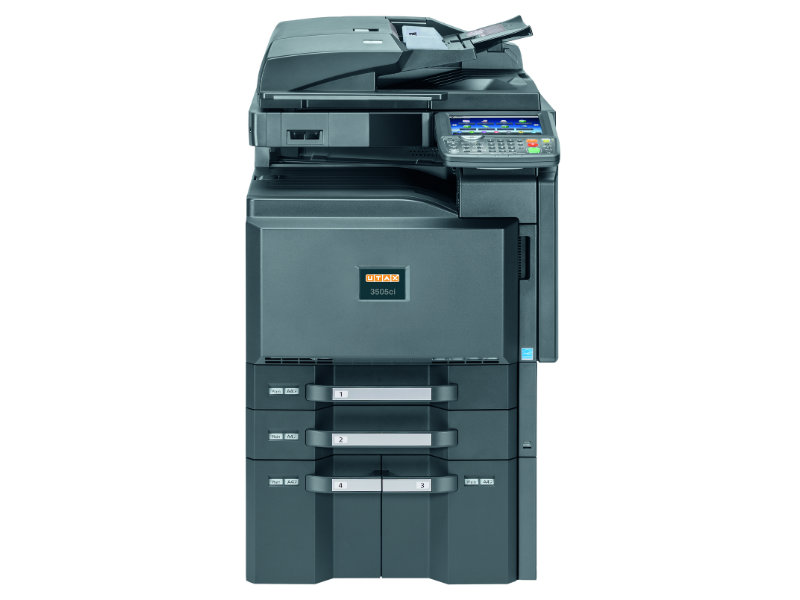

  • UTAX-3505ci-1

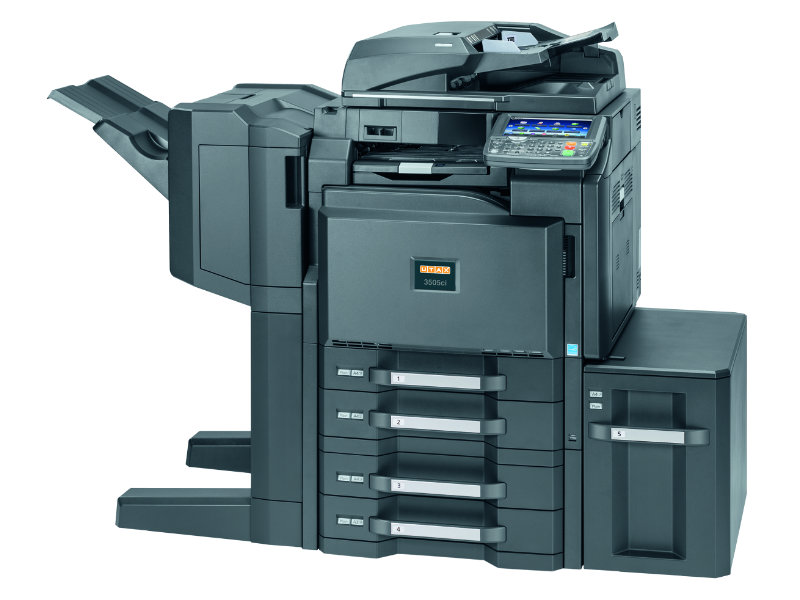

  • UTAX-3505ci-2

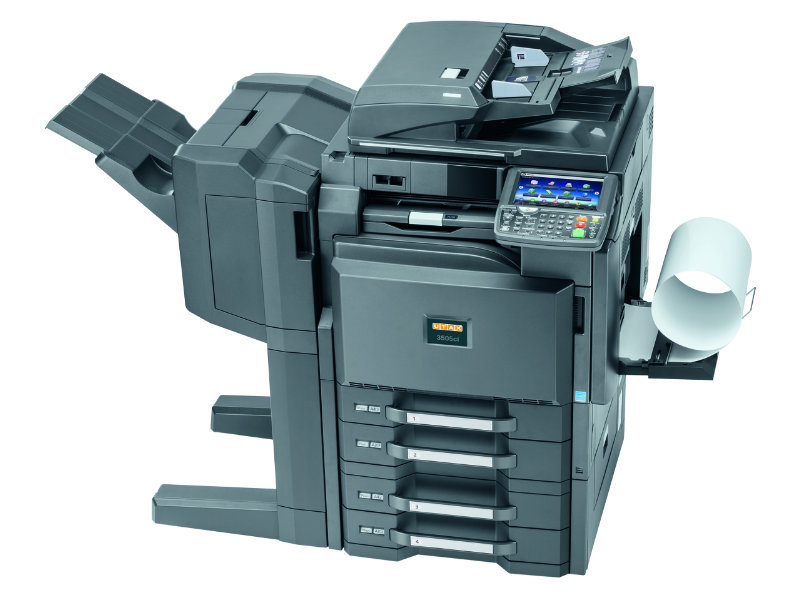

  • UTAX-3505ci-3

For a Quick Quote Click Here!

This innovative digital multifunctional colour system delivers documents with a speed of 35 pages per minute in a convincing high quality. Quite impressive!

The UTAX 3505ci  innovative digital multifunctional colour system delivers documents with a speed of 35 pages per minute in a convincing high quality.

A large colour touch panel as well as a user-friendly print driver makes printing, copying and scanning easy. Also, the paper management offers high flexibility due to the possibility of printing onto paper weights up to 300 g/m² and paper sizes up to A3+. The numerous options, in the area of paper management and finishing, help to achieve various user requirements.

With its technical innovations the UTAX 3505ci Colour Photocopier offers high quality, productivity, reliability and security.

General
TypeDesktop
FunctionCopy, print, scan, optional: fax
Print technologyLaser colour and b/w
Original formatmax A3 from platen glass
Copy/print speedmax 35 A4 pages/min and max 17 A3 pages/min in colour and b/w
1st page (Copy/Print)Colour: 6.4/8 seconds*, b/w: 4.8/6.2 seconds*
Warm-up time25 seconds
Copy resolution600 x 600 dpi, 9,600 x 600 dpi level
Greyscales256
Paper feed2 x 500 sheet universal cassettes (A5R-A3+), 150 sheet multi-bypass (A6R-A3+, Banner [305 x 1,219 mm]), A3+ in print mode only
Paper weightsUniversal cassette 60-220 g/m², multi-bypass 60-300 g/m²,
duplex 60-256 g/m²
Paper output250 sheet A4
System memory2 GB RAM, 160 GB HDD**
Continous copying1-999 copies
Zoom25 %-400 % in steps of 1 %
FunctionsAdjustable touch screen, duplex, 1,000 management codes, multi tasking controller, direct printing from USB stick, colour optimizer for printing, etc.
Dimensions/Weight
Dimensions747 x 648 x 767 mm (H x W x D)
Weightapprox. 114 kg
Environment
Mains voltage220/240 V, 50/60 Hz
Power consumptionapprox. 1,800 max, approx. 740 W in operation, approx. 200 W in stand-by mode, approx. 9.2 W in sleep mode
SafetyGS/TÜV, CE
Print System
TypeIntegrated within the system
Print formatA6R-A3+
Print resolution600 x 600 dpi, 9,600 x 600 dpi level
ProcessorFreescale QorlQ P1022 (Dual Core) 800 MHz
InterfacesUSB 2.0, 10/100/1000BaseTX, USB Host, CF Slot
Network protocolsTCP/IP, IPX/SPX, Net BEUI, EtherTalk
Operating systemsWindows XP, Vista, Windows 7/8, Server 2003/2008 R2/2012, Novell NetWare, Linux, Mac ex OS 10.4
EmulationsPCL6 (5c, XL), KPDL 3 (PostScript 3 compatible), XPS, PRESCRIBE IIc
FunctionsPDF/XPS direct printing, printing of e-mails, private printing, barcode printing
Scan system
Scan typeCCD colour and b/w
Scan formatmax A3
Scan speedb/w: max 70/100 A4 originals/min (simplex/duplex) with DP-772 (300 dpi)
colour: max 70/100 A4 originals/min (simplex/duplex) with DP-772 (300 dpi)
Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
Scan modePhoto, text, photo/text, OCR
File typesTIFF, PDF, PDF/A, JPEG, XPS
Interface10/100/1000BaseTX
Network protocolTCP/IP
Operating systemsWindows XP, Vista, Windows 7/8, Server 2003/2008 R2/2012
FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan (Windows Vista, Windows 7/8, Server 2008 R2/2012), SMTP authentication, LDAP, PDF compression and encryption
Optional fax system (W) B
CompatibilitySuper G3
Original formatmax A3
Modem speed33.6 kbps
Transmission speed3 seconds or less using JBIG
Compression methodJBIG, MMR, MR, MH
Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi), 600 x 600 dpi
Fax memory12 MB, max 120 MB
Operating systemsWindows XP, Vista, Windows 7, Server 2003/2008 R2
FunctionsNetwork fax driver, automatic redialling, delayed transmission, max 2 fax kits for parallel transmission and reception
*Depending on operating status.
**For copy, print, scan, fax.
Options
Original feederDP-770 (B) document processor with automatic reverse function (A5R-A3, capacity: 100 sheet A4, paper weight 45-160 g/m²),
DP-772 document processor with simultaneous duplex scanning (A6R-A3, capacity: 175 sheet A4, paper weight 35-220 g/m² [A5R-A3])
Platen coverPlaten cover type E (if document processor is not installed)
FinisherDF-770 (C) (capacity: 1,000 sheet A4, stapling max 50 sheet A4), DF-790 (C) (capacity: 4,000 sheet A4, stapling max 65 sheet A4), PH-7C hole punch unit for DF-770 (C)/790 (C), BF-730 brochure module for DF-790 (C) (max 16 sheet saddle stitching and folding A4/A3, tri-folding max 5 sheet A4), MT-730 (B) multi tray for DF-790 (C)
Job SeparatorJS-732 (inner), JS-731 (outer)
Paper feedPF-730 (B) (2 x 500 sheet universal cassettes (A5R-A3+)), PF-740 (B) (2 x 1,500 sheet large capacity cassette (A4)), PF-770 (3,000 sheet large capacity tray (A4), side deck)
Other optionsScan extension kit (A), Data security kit (E), Internet fax kit (A), Printed document guard kit (B), Card authentication kit (B), Card reader holder (E), Keyboard holder (B), Banner guide (A), UG-33 ThinPrint® kit, UG-34 Emulation option kit, IB-50 Gigabit Ethernet card, IB-51 WLAN card, DT-730 (B) Document tray, cabinet no. 63, Fiery® Controller
